High transparency: 45%~90% transparency with better lighting effect.
Light Cabinet: about 10 kg for 1sqm. Labor and cost-saving for transportation, installation, and maintenance.
Easy installation: Only 10 seconds to finish single panel installation due to the simple fast lock and connectors.
Excellent visual effect: Unique visual impact of rapid and accurate drainage for advertising effect.
High Transparency
- Simplified structural design, with a transparency of 70%-85%
- High light transmittance, does not affect lighting and sight
- High ventilation, natural convection heat dissipation, no fan required
- Not change the appearance of commercial buildings. Installed indoors, and does not affect the lighting.
- The transparent LED screen is like shutters, and the light passes through a certain angle imaging to our eyes.
Super Light-weight
Aluminum frame light weight.

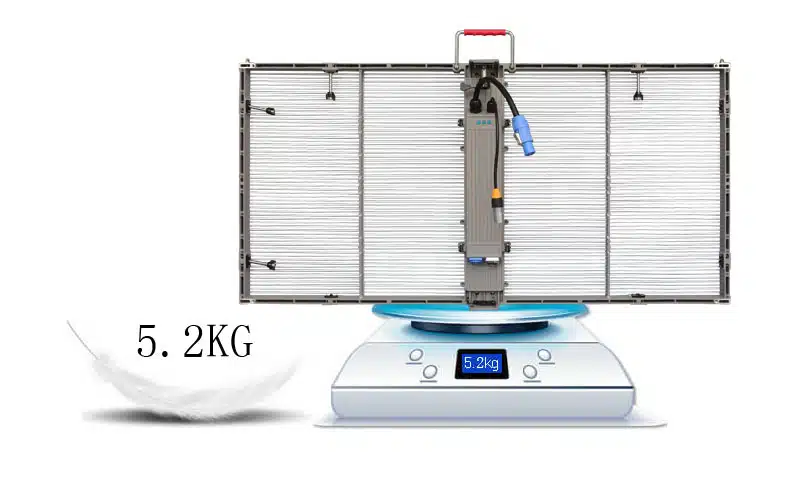

Compared with the other LED Display, the weight is reduced by more than 50%, and the weight is 5.2kg/cabinet.
Hot-plug design between PCB board and box
5V safety voltage, simple maintenance, and safe and durable
Hidden lock connection
Convenient and beautiful, one person can quickly assemble
Power, signal plug connection
Built-in power supply and receiving card
HD Visual Experience
High contrast, the ultra-wide viewing angle of 160°, bright and colorful, attracting attention.
Refresh rate can reach 3840Hz, no flicker, good display effect
With a unique circuit design, the power consumption is very low.
P3.91 ultra-fine pitch brings high-definition visual enjoyment and supports user customization.
Specification of transparent led screen
| Application | Outdoor | Indoor | Indoor |
|---|---|---|---|
Piexls Pitch | 3.91(w)-7.81(h) | 3.91(w)-7.81(h) | 3.91(w)-7.81(h) |
LED lamp | SMD1921 | SMD1921 | SMD2020 |
Brightness | 5000nit | 5000nit | 1200nit |
Resolution | 256*64 | 256*64 | 256*64 |
Driver IC | ICN2153 | ICN2153 | ICN2153 |
Scan mode | 1/8 | 1/8 | 1/8 |
Transparency | 50% | 50% | 50% |
Refresh rate | 3840 | 3840 | 3840 |
View angle | 110 | 160 | 160 |
Waterproof | IP65(F)/IP54(B) | IP43 | IP43 |
View distance | >=4meter | >=4meter | >=4meter |
Power input | 110v~220v | 110v~220v | 110v~220v |
Size | 1000mm~500mm*80mm | 1000mm~500mm*80mm | 1000mm~500mm*80mm |
Weight | 6.5 kg | 5.2kg | 5.2kg |
Applications
Make your Transparent LED display come alive and attract the attention it deserves.
Highly customizable, this indoor transparent LED screen can be designed to create attention-getting displays. Ideal for permanent and semi-permanent displays, including shopping mall, concert displays, entertainment venues, national landmarks, and trade shows.
Clear Series LED Screen can be customized to fit your indoor architecture, no matter the size, from small displays to giant transparent LED video screens and even overhead canopies.
