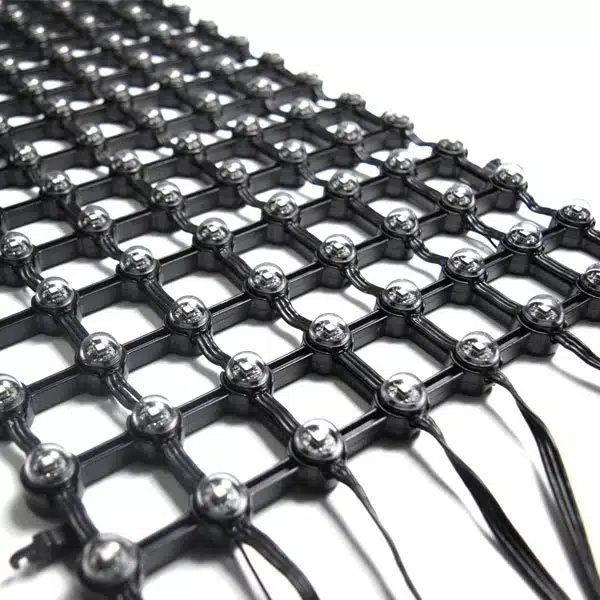

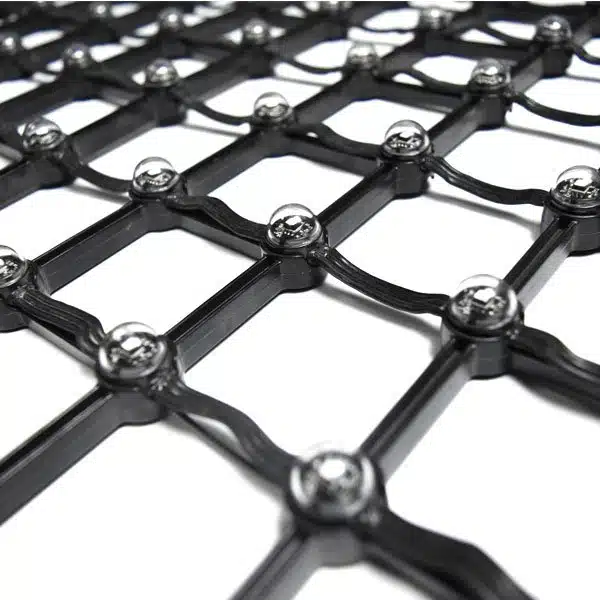

Flexible LED Mesh
Flexible LED mesh are suitable for indoor and outdoor use, whether for indoor decoration or outdoor advertising, flexible LED mesh have unlimited design space
Ultra flexible design
Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available.
Versatile Installation
LED strips can be taken out to satisfy various creative ideas.
High Transparency
High transparent rate, do not affect building appearance. easy for stage light/fog/lasers go through the screen to create superb visual effect
light-weight
saving approximately 90% in the transport space and cost screen weight: 2 KG for 1 square meter
Fully customizable
Ultra-flexible design makes it can be curved freely to achieve creative shapes like the arch, circle, wave, customized size available.
The distance between 1 dot to 8 dots
two colors: black color and transparent color
G1 Series — 1LED/pixel
G4 Series — 4LEDs/pixel
G6 Series — 6 LEDs/pixel
G8 Series — 8 LEDs/pixel
This is designed to increase the brightness, the more pixels of a single LED, the higher the brightness
How To Install
The flexible LED Mesh does not need a complicated steel structure like other LED screens. The lightweight and ultra-thin design makes the installation look like hanging a huge photo, especially when building a 1,000 sqm LED screen, which can not only save you a lot of installation time and labor costs. you can’t imagine how amazing it is.
Low Temperature Test
It can still work stably in the environment of -20°C. By using a low temperature resistant power supply, the minimum operating temperature can reach -40°C
High Temperature Test
It can work in the environment of 100 °C for a short time and work stably in the outdoor environment of 50 °C for a long time without the need for other cooling equipment.
Waterproof Test
our screen can reach waterproof IP67, and it can work in water for a short time
Anti-Flame Test
Use UL-certified fireproof cable, After crazy rotation, the wire is still undamaged, and the led is working normally
Break-point Transferring
Use the UCS 5603IC, which supports break-point transferring. That means that even if one LED pixel is broken, it will not affect the work of the following LEDs.
70%-95% transparency not only does not affect the lighting inside the building, but also has strong wind resistance, effectively reducing wind load, and further reducing the strength and weight of the LED display base structure. It is very suitable for installation in buildings, inside the glass wall.
Energy conservation and environmental protection
No heat dissipation equipment is needed, no noise, and low power consumption.
The led module composed of each LED strip is made of environmentally friendly materials, and the surroundings are permeation, so automatic cooling can be achieved.
At the same time, the power supply, controller, etc. are isolated from the luminescent material, and there is no need to have an air conditioner for heat dissipation like traditional LED displays.
Highly integrated
The slave controllers are highly integrated, each controller has a built-in power supply and receiving card; at the same time, the power and signal of our screen are two-in-one, and each LED strip has only one interface, and the wire failure rate is low.
It uses MEANWELL power supply—China’s best power supply brand. Compared with other power supplies, it not only has a low failure rate, but also prevents short circuit, overload, and high temperature. Therefore, it has passed the UL certification, which better guarantees the screen and human Safety.
Fast Maintenance
When you find a failed LED, you don’t need to remove the entire screen like a traditional screen, you can directly remove the failed LED Pixel from the bracket and replace it with a new LED.
| Model | G1-37.5mm | G1-56.25mm | G1-75mm | G1-80mm | G1-100mm |
|---|---|---|---|---|---|
| Pixel Configuration | 1*SMD3535 | ||||
| LED brand | Nationstar led lamp with golden wire | ||||
| Application | Indoor | Outdoor | ||||
| Panel Resolution (pixels) | 8 dots x 168 dots (adjustable) | ||||
| Pixel Pitch(mm) | 37.5 | 56.25 | 75 | 80 | 100 |
| Panel Size(W*H) | 0.3m x 6.3m | 0.45m x 9.45m | 0.6m x 12.6m | 0.64m x 13.44m | 0.8m x 16.8m |
| Weight/sqm | 4.1kg | 2.5kg | 2.1kg | 2kg | 1.8kg |
| Brightness (nits) | 1725 | 805 | 635 | 575 | 345 |
| Transparency | 75% | 80% | 85% | 88% | 95% |
| Maximum Power Consumption(W/m²) | 350 | 155 | 120 | 110 | 50 |
| Driving Mode | Static, constant currency | ||||
| Color Grayscale(Bit) | 14 Bit | ||||
| Operating Voltage | DC7.5V | ||||
| Refresh Rate(Hz) | 1000-3000 | ||||
| Working Temperature(℃) | -40°- 60° | ||||
| IP rating(Front/Rear) | IP67 | ||||
| Viewing angel | 140°/110° | ||||
| Lifetime Typical Value(hrs) | 100000 | ||||
| Cabinet installation type | Fix/Rental | ||||
| Controller | Novastar / YDEA / Colorlight / Madrix | ||||
| Slave Controller | Support 8*168dots|16*64dots (Adjustable) | ||||
Related Case
Product: Flexible led mesh.
Area: 420sqm
Pixel Pitch: G6-56.25mm
Location: Shopping Center
Product: Flexible led mesh
Area: 1460sqm
Pixel Pitch: G1-56.25mm
Location: Shopping Mall
Product: Flexible led mesh.
Area: 5000sqm
Pixel Pitch: G1-40mm and G6-100mm
Location: Sea world
Product: Flexible led mesh
Area: 134.38sqm
Pixel Pitch: G6-56.25mm
Location: Commercial street
FAQ
?
The whole system needs a computer, the main controller, slave controllers, LED screen, and distribution boxes.
It can be used both indoor and outdoor. The Ingress Protection level of the product has reached IP65
You need to install two software on your computer: novalct and novastudio
The only difference between them is brightness and voltage. Generally, we will recommend suitable models according to different needs of customers.
