DIY HOME LED WALL
Enjoy the cinema-level giant LED WALL visual experience at home
A self-made construction made from DIY HOME LED Wall
Tool-less Installation of the Electronic components
Controller with pre-programmed setup ready to use.
- Make the installation simple.
- Reduce the weight.
- Bring the costs down.
- Quick a safety
- Plug and play.
- No size limit, larger than 170 inches
Design Concept
Born for family, new design concept. Enjoy the cinema-like experience with your family at weekends.
DIY design enables you to find unlimited possibilities.
Big screen, you can be in a movie theater experience at home

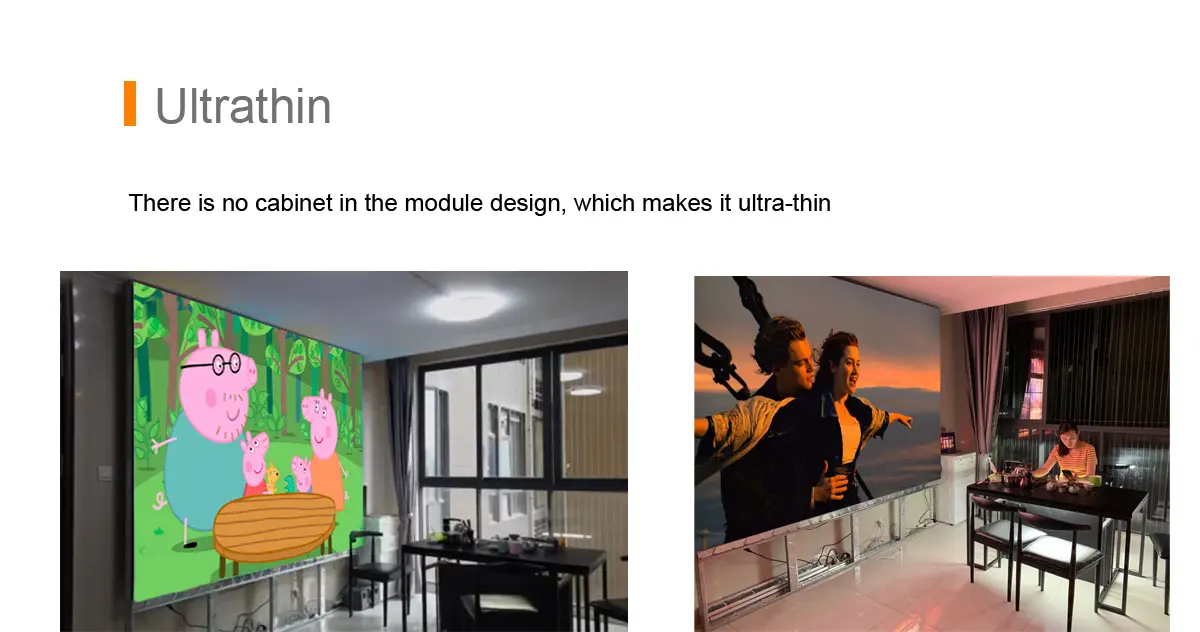

Simple and convenient without bulky box structure

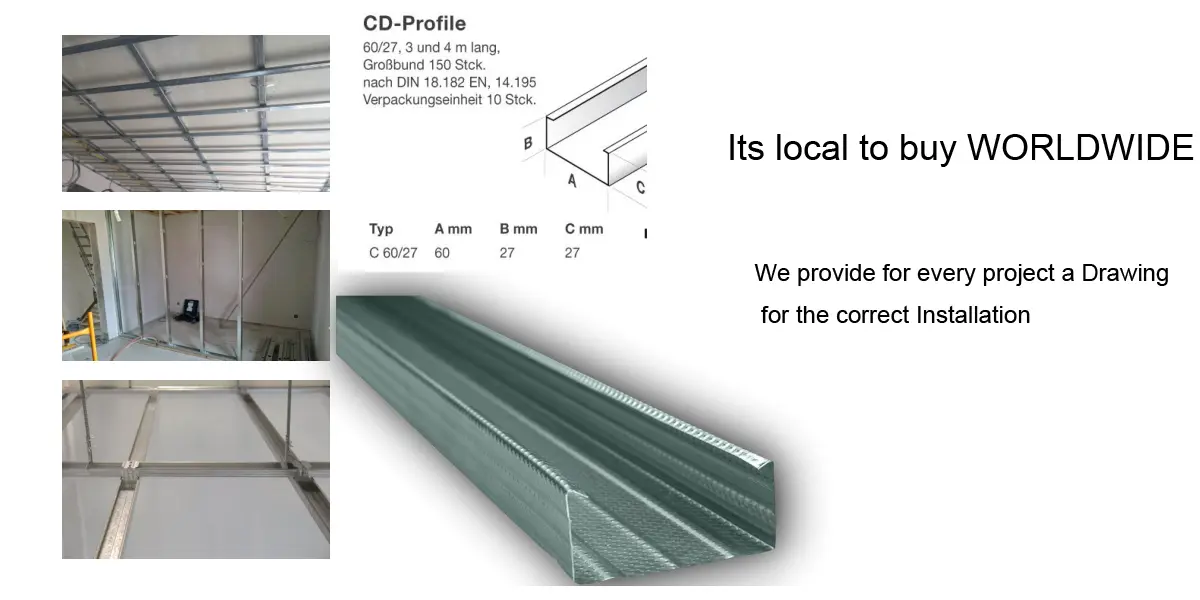

Build your LEDWALL at home with only common building materials

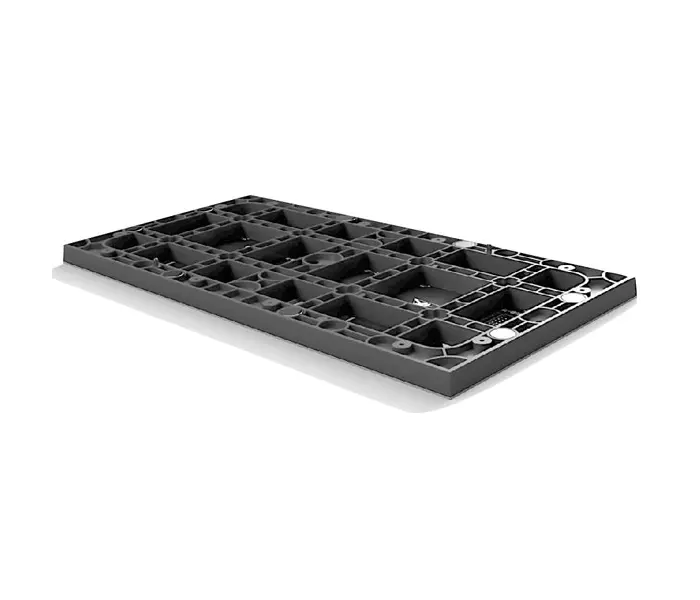

Front maintenance Module-magnetic

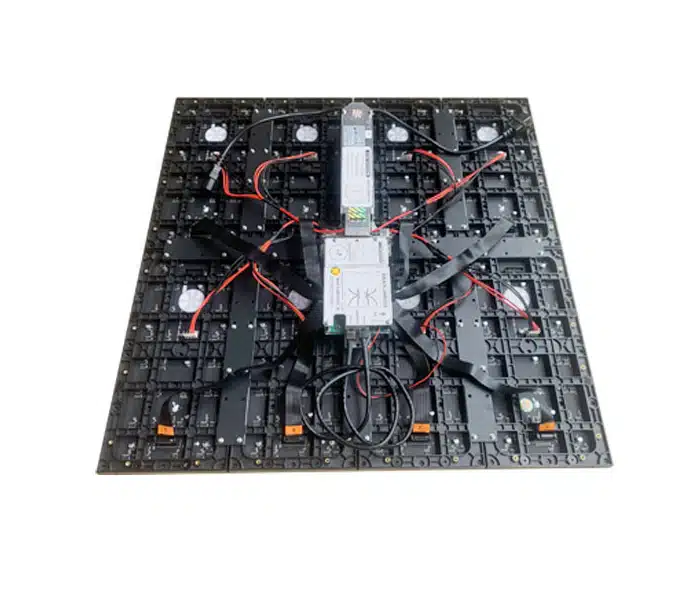

Each unit consists of 8 pieces of 320*160 LED modules. Each unit size is 640*640mm.
8 powerful magnets embedded in each LED module.High-strength magnets ensure strong magnetic force and are tightly adsorbed on the steel structure
Accessory

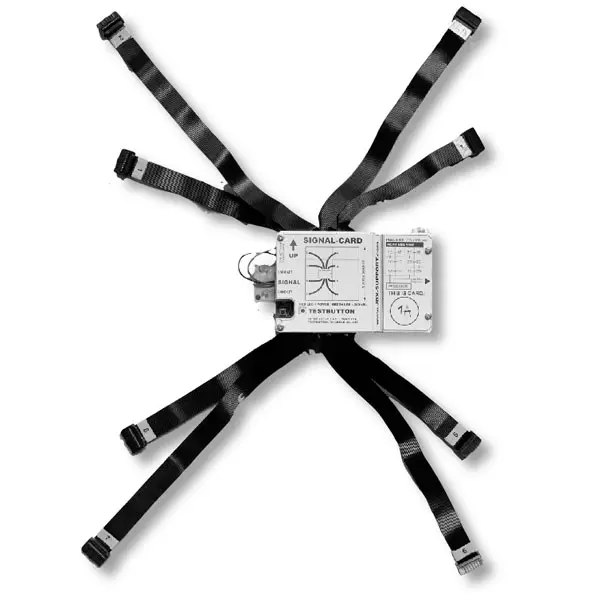

Receiving card
Each card has 8pcs signal cable connected to the back of the led module.

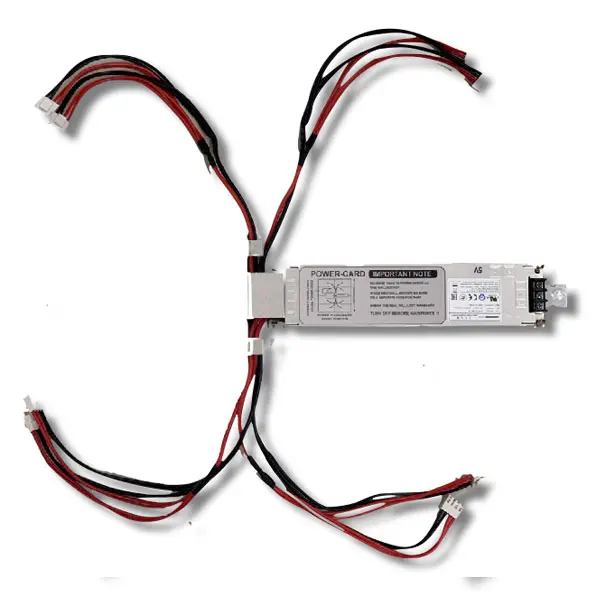

Power supply
Each power has 8pcs 5V cables connected to the back of the led module
Video controller
Controller with pre-programmed
Setup ready to use..
5.9kg per Unit, Less Shipping Cost
Parameter
| Pixel Pitch | 1.83mm | 2mm | 2.5mm |
|---|---|---|---|
| Pixel Configuration | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density/Sqm | 288906 | 250000 | 160000 |
| Unit panel size | 640mmx640mm | 640mmx640mm | 640mmx640mm |
| single Module size | 320mmx160mm | 320mmx160mm | 320mmx160mm |
| weight (kg/carton) | 5.9KG/carton | 5.9KG/carton | 5.9KG/carton |
| Brightness | 800nits | 800nits | 800nits |
| Shortest Viewing Distance | 1.8m | 2m | 2.5m |
| Max.Power Consumption（W/m²) | 650W/pcs | ||
| Ave.Power Consumption（W/m²) | 280W/pcs | ||
| Protection Level | IP43 | ||
| Viewing Angle | 160°(H)/160°(V) | ||
| Gray Scale | 14bit | ||
| Gray Scale per color | 16384 | ||
| Refresh Rate | 1920-3840HZ | ||
| Application | Indoor | ||
| Controller | Synchronous Display with control PC by DVI | ||
| Power Supply | AC100-240V | ||
| Working Environment | Temperature -10℃++50℃,humidity 10-90% RH | ||
| Color Temperature | 8000K | ||
| Life Time | >100000hours | ||
Application
We Have a Vision
Make installation simple
Many people have a strong interest after seeing our LED Wall, but the complicated installation method discourages them. So, we creatively made a simple installation method, ready for DIY Home LED wall to enter thousands of households.
Reduce the weight
Most of the led walls we have seen are bulky box structures, which make installation and transportation difficult, we removed the main frame, which will become lighter and easier to transport.
Bring the cost down
The installation is simple and the transportation is simple, which has brought us a fundamental change. Each unit is less than 6kg, which will reduce our huge transportation costs and allow you to use cinema-like LED screens at home.
Are you interested? please send an inquiry, we will provide you with professional advice
