16:9 led Video Wall
Pico-panel series
Pico panel Series is an excellent solution for broadcast studios, security monitoring, meeting room, etc by offering flexible mounting options, including wall mount, hanging, or stackable.
Each panel is conveniently designed in a perfect 16:9 ratio. Front serviceable modules make it easy to keep this panel looking good, all the time.
Available pixel pitches: 1.25mm, 1.56mm, 1.875mm
16:9 golden ratio small pitch
Easy to configure 2K, 4K, 8K, 16K High resolution Indoor Screen
PRODUCT FEATURES
- Ultra Light & Thin
- Front and back maintenance
- High refresh 3840hz
- Power & Data Redundancy
- Wireless connection with cabinet

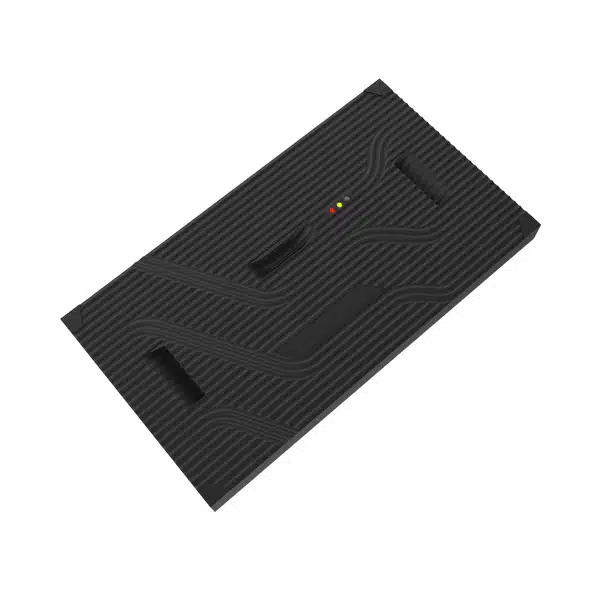

Ultra-thin
Single cabinet thickness as thin as 49mm
Ultra-light
Single cabinet weight is 6.95KG
Front maintenance
Magnetic module design
3840Hz
No ripples, no black screen, clear edges
Power & Data Redundancy
Featuring dual receiving cards & dual power supply, the product ensures continuity of information transmission with no power cut or signal loss, particularly for control room and studio scenarios
Wireless connection
Wireless connection between cabinets, support front and rear maintenance and Wireless installation. It brings the charm and quality of technology.
Easy maintenance
Modules, power supplies and internal cables are accessible from the front, which makes installation and maintenance easy for one person.
THE CNC HIGH ACCURACYPROCESS CABINET
(FLATNESS OF CABINET<0.01MM)
| P0.93 | P1.25 | P1.44 | P1.56 | P1.875 | |
|---|---|---|---|---|---|
| pixel pitch | 0.93 | 1.25 | 1.44 | 1.56 | 1.875 |
| module size（mm） | 200X168.75 | 200X168.75 | 200X168.75 | 200X168.75 | 200X168.75 |
| resolution | 645×363 | 480X270 | 417×234 | 384X216 | 320X180 |
| cabinet size | 600(W)X337.5（H）x49(D) | ||||
| cabinet area(M2) | 0.2025 | ||||
| cabinet weight（kg） | 7.8 | ||||
| cabinet flatness（mm） | <0.1 | ||||
| brightness | ≥700（6500K） | ||||
| Color Temperature (K) ） | ≥12000 | ||||
| Viewing Angle | 160/160 | ||||
| Contrast | 5000:01:00 | ||||
| Peak power consumption (W / m2) | 700 | 300 | 300 | 300 | 300 |
| Average power consumption (W / m2) | 250 | 90 | 90 | 90 | 90 |
| Drive mode | Constant drive，1/30 | Constant drive，1/27 | Constant drive，1/30 | Constant drive，1/27 | Constant drive，1/30 |
| Refresh rate (Hz) ） | ≥3840 | ||||
| Number of color processing bits | 16bit | ||||
| Video playback capabilities | 2KHD，4KHD | ||||
| Operating temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH | ||||
Related Case
Product: Pico-panel series.
Area: 12.75sqm
Pixel Pitch: P1.25mm
Location: Conference hall
Product: Pico-panel series.
Area: 50.01sqm
Pixel Pitch: P1.875mm
Location: Hotel Lobby
Product: Pico-panel series.
Area: 20.25sqm
Pixel Pitch: P0.9mm
Location: Control Center
Product: Pico-panel series.
Area: 15.18sqm
Pixel Pitch: P1.56mm
Location: Conference Room
